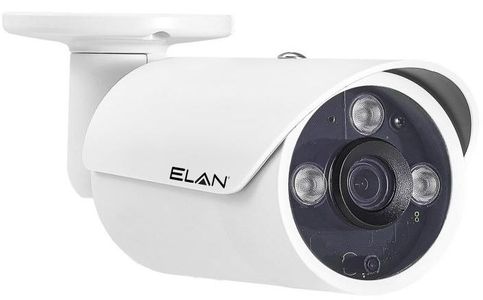

ELAN® IP Fixed Lens 4MP Outdoor Bullet Camera-White

At a Glance

ELAN® IP Fixed Lens 4MP Outdoor Bullet Camera-White with an optimal 84° angle of view without distortion and 30m IR distance

Proposition 65 Warning for California Residents

The EL-IP-OBF4-WH IP is a 4MP bullet camera with back light compensation and enhanced IR illumination. ELAN Discovery enables it to be provisioned in an ELAN Surveillance system with just a few clicks.

The EL-IP-OBF4-WH IP bullet camera – enabled with ELAN Discovery – is an exceptional option for outdoor, and also works well for indoor applications that need to view a designated area. Bullet cameras are flexible in terms of placement, and can be mounted on the wall, soffit, the overhang of the roof, or under the eave. The unique property of bullet cameras means it’s designed for monitoring relatively smaller swath of areas such as the driveway, garage, front door, back door, stairway, hallway, entryway, etc. Bullet cameras are easy and quick to install because they cater multiple mounting options. Bullet cameras also excel in maneuverability; once mounted, they can be pointed to cover the desired area.

ELAN Discovery

Find, provision and install the ELAN Surveillance cameras with just a few clicks.

All ELAN Surveillance products are embedded with the ELAN beacon, making them the fastest and easiest surveillance products to install in an ELAN system. Just connect the NVR and cameras to the network and ELAN Discovery takes it from there. Its Auto-Discover and Auto-Configure feature scans your network, including wireless connections, allowing you to provision and install devices with just a click. We’ve eliminated the need to individually log into each device for setup, saving you substantial time.

Full Control within the ELAN UI

Peace of mind from a new level of control

ELAN Surveillance delivers a seamless control system integration that rises above the competition. With full control of both the NVR and cameras from a single user interface, your customer no longer needs to witch between the ELAN control app and their surveillance app. No other surveillance systems can match this level of control integration.

Outdoor and Cold Weather Durability

ELAN outdoor cameras are IP66 rated and built to withstand nature’s strongest environments. Durable by design, this camera is rated to -40 Fahrenheit. Instead of using a cheaper fiberglass PCB requiring an internal heater as found in competitive brands, ELAN cameras use a multi-layer aluminum PCB. Along with an improved LED layout, these features help dissipate heat evenly throughout the camera without creating hotspots. This helps increase camera life expectance and reduces power consumption.

Powerful IR illumination

At night, the camera needs to accurately identify an object as soon as possible. With an IR illumination range of 30m, ELAN Surveillance cameras provide the homeowner with level of security they require.

Back Light Compensation

A dimly lit room with a bright background affects a camera’s ability to accurately identify an object. ELAN’s proprietary technology allows our cameras to automatically adjust the sensors’ exposure level by ignoring intense areas of light. This allows effective identification of an object during both live view and recorded playback.

Sense Up and Sense Up+

ELAN cameras automatically adjust the shutter speed to control the amount of light to be absorbed by the sensor. This is especially beneficial in low light environments when a lower shutter speed allows more light to be captured.

Fixed Lens Camera

Fixed lens cameras are the camera of choice in most installations. They are quick to install and provide and excellent range of view. With a focal point of 4mm, ELAN fixed lens cameras provide an optimal 84° angle of view without distortion.

Key Features

Auto-Discover/Auto-Configure

4 Megapixel or 2 Megapixel

High Dynamic Range (HDR)

30m IR Distance

4mm Fixed Lens

Advanced Built-in Motion Analytics

IP66 Weather Resistanrt

Micro SD Card Slot

Alarm In/Out

2-Way Audio Support

Automatic Gain Control (AGC)

Operating Temperature: -40°F – 122°F

Max Frame Rate: 30FPS @1920x1080

3D Digital Noise Reduction

2D Wide Dynamic Range

Power Over Ethernet (PoE)
