ELAN® HDBaseT 100m Extender Set

Model #: EL-4KHDBT-KIT-70-E-ARC-IRS

At a Glance

ELAN® HDBaseT 100m Extender Set with design to extend HDMI 1080p up to a distance of 100m and supports 4K UHD video up to 70m

WarningProposition 65 Warning for California Residents
ELAN® HDBaseT 100m Extender Set

General Specs

Manufacturer Warranty2 Year

Dimensions

Shipping Dimensions13.39" x 11.42" x 2.36" (L x W x H)

ELAN® HDBaseT 100m Extender Set

Model #: EL-4KHDBT-KIT-70-E-ARC-IRS
191395
Model #: EL-4KHDBT-KIT-70-E-ARC-IRS
Elan
$99,999.00

Available in Store Only

At a Glance

ELAN® HDBaseT 100m Extender Set with design to extend HDMI 1080p up to a distance of 100m and supports 4K UHD video up to 70m

Get to know this product.

HDBaseT Extender Set - 100m (4K up to 70m), Bi-directional IR, Bi-directional PoH (PoE), Audio Breakout, ARC, RS-232, 3 x LAN switch, HDMI Loop Out, HDCP 2.2.

    Extends HDMI 1080p up to a distance of 100m over single CAT cable

    Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

    Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

    Supports 3D signal display

    Features 1x HDMI loop out for integrating local displays or cascading to multiple devices

    Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs

    Supports audio return to HDMI, Optical digital and analog L/R audio outputs (DAC supports 2CH PCM only)

    Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

    Integrated 3-port Ethernet switch (LAN Serving)Bi-directional RS-232 pass through

    Bi-directional IR from all input and output locations

    Includes 1 x 5v-to-12v IR converter cable for IR Input

    Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver endHDCP 2.2 compliant

The EL-4KHDBT-KIT-70-E-ARC-IRS extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m (4K up to 70m) over a single CAT cable. The EL-4KHDBT-KIT-70-E-ARC-IRS also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

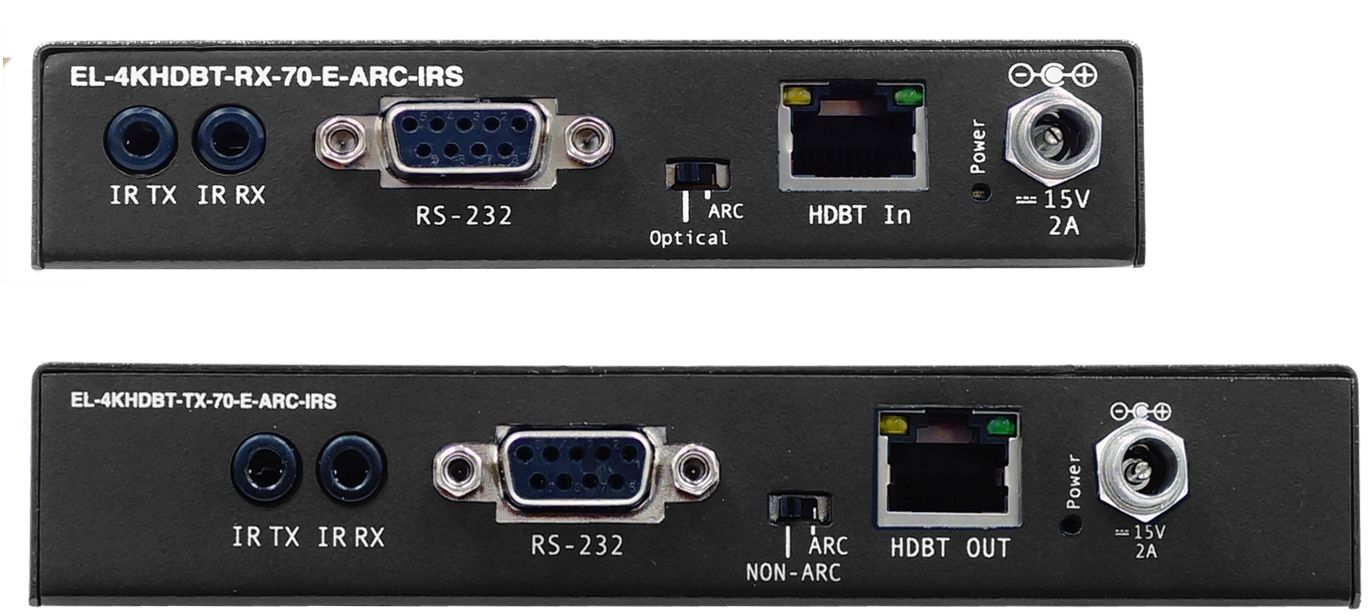

Connections

    EL-4KHDBT-RX-70-E-ARC-IRS - RS-232; HDBT In; Optical In; HDMI Out; Ethernet x 3

    EL-4KHDBT-TX-70-E-ARC-IRS - RS-232; HDBT Out; RCA Audio Out; Optical Out; HDMI In; HDMI Out; Ethernet



Useful Documents
Specifications

General Specs

Manufacturer Warranty2 Year

Dimensions

Shipping Dimensions:13.39" x 11.42" x 2.36" (L x W x H)
