ELAN® Dual AM/FM Sirius-Ready Radio Tuner

At a Glance

ELAN® Dual AM/FM Sirius-Ready Radio Tuner with rack ears included and four sets of independent outputs

Proposition 65 Warning for California Residents

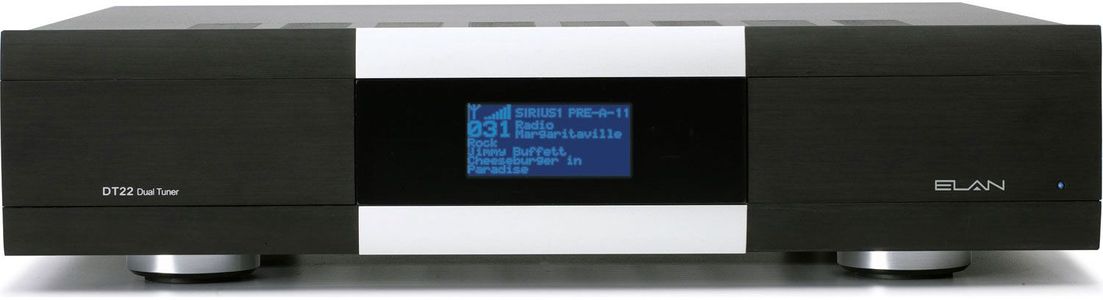

The DT22 is a Sirius-ready, dual AM/FM tuner that lets your clients enjoy independent radio station listening in different rooms throughout the house.

Built-in dual AM / FM tuners

Sirius-ready for two plug-in modules

Four sets of independent outputs for multi-room listening

IR-, Ethernet- & Serial-controllable

View radio station & “Now Playing” information on ELAN user interfaces

Easy setup & diagnostics w / front panel buttons & graphical LCD

Displays all RBDS data

Preset or direct numeric access

Each tuner includes 396 presets

IR remote control (included)

Link 2 DT22s to provide up to 8 tuners (4 AM / FM, 4 Sirius)

Sirius Parental Control menu

ELAN SmartSource with built-in RS-232 serial driver

Built in to the DT22 are two high-quality AM / FM tuners. Additionally, the DT22 features inputs for the quick and easy connection of two Sirius Satellite Radio Modules. Dedicated outputs for the AM / FM tuners plus two dedicated Sirius outputs means that your clients can listen to up to four different streams of radio throughout their home from a single DT22. If they want even more, two DT22s can be linked for up to eight independent audio outputs.

The DT22 has a front panel IR receiver and comes with a full function handheld remote. There are also rear panel control ports for IR, serial and Ethernet control. In an ELAN multi-room system, 2-way feedback, including station call letters, frequency, genre, song name and artist, can be viewed on any ELAN Touch Panel, Touch Screen or TS2L Touchpad.* The DT22 also decodes and displays data from the Radio Broadcast Data System (RBDS) in the US, enhancing the user experience even further.

Setup of the DT22 is easy and intuitive through front panel buttons and a graphical LCD. Installers are guided through the setup process for everything, including Network and Ethernet settings. There’s even a diagnostics screen that provides AM/FM signal strength and Sirius signal detection status. Users can easily program their own favorite station presets as they too, are guided through this process for each tuner.

*Displayable data varies depending on source, i.e. standard AM/FM, RBDS, or Sirius radio.
