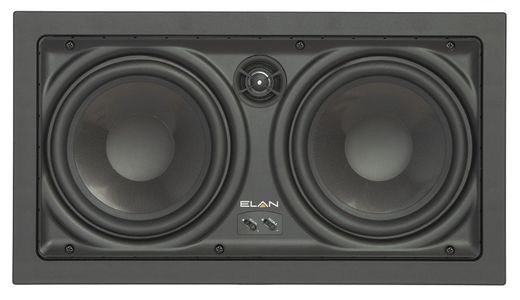

ELAN® 800 Series 6.5" LCR In-Wall Speaker (Each)
At a Glance
For both high-performance distributed audio and exceptional home theater performance, the EL-800-IWLCR-6 is the perfect choice for discerning customers. Better clarity, resolution and dynamics are achieved via a graphite-injected polypropylene cone woofer and the 1" aluminum dome tweeter. The EL-800-IWLCR-6 is the perfect left, center, right home theater speaker. Increased vocal clarity, enhanced dialogue and adjustment of post-installation tweeter performance are enabled with the front-mounted vocal and tweeter enhancement switches.
Proposition 65 Warning for California Residents
General Specs
| Frequency Response | 47Hz-20kHz |
|---|---|
| Manufacturer Warranty | Limited Lifetime |
| Collection | 800 Series |
| RMS Power Handling (Watts) | 120 |
| Color | Black |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 120 |
| Number of Speakers | 1 |
| Sensitivity | 91 |
| Speaker Type | In-Wall Speakers |
| Depth (in.) | 3.3 |
| Height (in.) | 11 |
| Width (in.) | 15.6 |
| Woofer Size | 6.5" x 2 |
General
| Length | 17.4 (Inches) |
|---|---|
| Width | 10.5 (Inches) |
| Height | 5.3 (Inches) |
| Weight | 8 (Lbs) |
| Unit Of Measure | Each |
| Woofer Size | Dual 6-1/2" / 160mm |
| Woofer Construction | Graphite Injected Polypropylene Cone |
| Tweeter | 1" / 25mm Pivoting Aluminum Dome |
| Frequency Response | 47Hz-20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 120 (Watts) |
| Sensitivity | 91 (dB) |
| Timbre | Timbre-Matched to all 800 Series Speakers |
| Dimensions | 15.6" / 396mm Width x 11" / 280mm Height x 3.3" / 85mm Depth |
| Hole Cutout Dimensions | 7.5" / 190.5mm Width x 14.5" / 369mm Height |
| Mounting Depth | 3.2" / 82mm |
| Warning | WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
ELAN® 800 Series 6.5" LCR In-Wall Speaker (Each)
Model #: EL-800-IWLCR-6
Available in Store Only
At a Glance
Get to know this product.
Dynamic Room Filling Angled Woofer
Low Crossover points and an angled light-weight graphite injected polypropylene cone woofer delivers dynamic sound with the widest dispersion possible
Quick, Responsive Highs
The aluminum dome tweeter is lightweight, strong and respond instantaneously to changes in music or movies
Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations
Vocal and Tweeter Enhancement Switch
Easily adjust tweeter performance or enhance the dialogue in movies via the Vocal and Tweeter Enhancement Swiches
Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor
Secure Connection
All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling
Secure Connection
All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling
Lifetime Warranty
Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty
Dynamic Room Filling Sound
Graphite-injected polypropylene cone woofer
Aluminum dome tweeter
