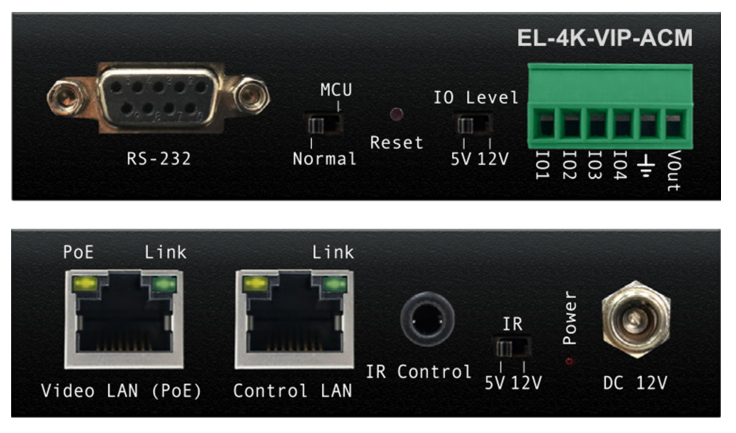

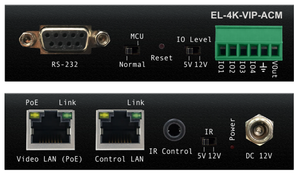

ELAN® 4K UHD Video Over IP Advanced Control Module

Model #: EL-4K-VIP-ACM

At a Glance

The ELAN Premium Video over IP (VIP) platform distributes HDMI video over a 1GB Network switch using visually lossless technology. The EL-4K-VIP-ACM Advanced Control Module integrates 4K Video Over IP into the ELAN smart home control and automation system.

WarningProposition 65 Warning for California Residents
ELAN® 4K UHD Video Over IP Advanced Control Module

General Specs

Depth (in.)4.33
Width (in.)3.78
Height (in.)1.02
Amount Of Lan Ports2
Number Of Lan Ports2
Product Weight (lbs.)1.32

ELAN® 4K UHD Video Over IP Advanced Control Module

Model #: EL-4K-VIP-ACM
396834
Model #: EL-4K-VIP-ACM
Elan
$99,999.00

Available in Store Only

At a Glance

The ELAN Premium Video over IP (VIP) platform distributes HDMI video over a 1GB Network switch using visually lossless technology. The EL-4K-VIP-ACM Advanced Control Module integrates 4K Video Over IP into the ELAN smart home control and automation system.

Get to know this product.

Advanced Control Module for ELAN 4K UHD Video Over IP

The ELAN Premium Video over IP (VIP) platform distributes HDMI video over a 1GB Network switch using visually lossless technology. The EL-4K-VIP-ACM Advanced Control Module integrates 4K Video Over IP into the ELAN smart home control and automation system. ELAN drivers built into each product’s firmware simplify product installation and negate the need for an understanding of complex network infrastructures. The EL-4K-VIP-ACM includes a web interface module for control and configuration of the system when not used with the ELAN home control system that features ‘Drag & Drop’ source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio, and Video.

Designed to work with the ELAN smart home control and automation platform

Optional web interface module for configuration and control of the ELAN Video Over IP (VIP) systems when used without the ELAN system

Optional intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status when used without the ELAN system

Advanced signal magagement for independent routing of IR, RS-232, USB, audio and video

Auto system configuration

RS-232 integration for control of VIP system

IR integration for control of VIP system

Powered with PoE (Power over Ethernet) using a PoE Switch

Local 12V power supply (optional) should Ethernet switch not support PoE

Support for IOS and Android App control

3rd Party drivers available for all major home control brands"

2x RJ45 LAN connections to bridge existing network to VIP video distribution network, resulting in:

Better system performance as network traffic is separated

No advanced network setup required

Independent IP address per LAN connection

Allows simlified TCP / IP control of VIP system

Specifications

General Specs

Depth (in.)4.33
Width (in.)3.78
Height (in.)1.02
Amount Of Lan Ports2
Number Of Lan Ports2
Product Weight (lbs.)1.32
